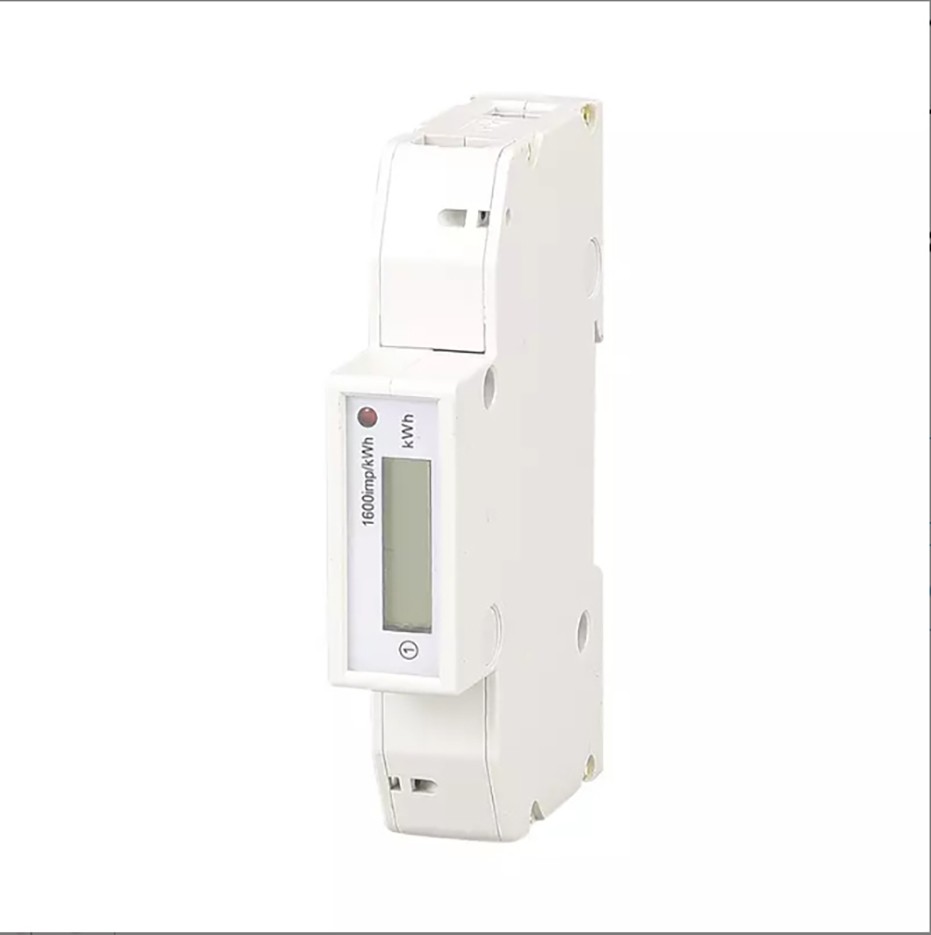

single phase din rail meter one module

Functions and characteristics

Technical Speci cations: • 220-240V Single Phase, kWh meter

• Rated Voltage: 220 volts (+/-30%)

• Rated Current: 5(60)Amps

• CT Inside Diameter: 14mm (about .55 inch)

• Pulse output impulse constant: 1000imp/kWh

• Range of allowable environmental conditions: Pollution Degree 2, Measurement Category III, Altitude rating 2000 meters max. Maximum  Temperature Range: -20 Deg. C to 65 Deg. C.

• The equipment is protected throughout by  double insulation as indicated by this symbol:

• Accuracy Class: 1 (±1% accurate) (Fig 3) • Rated Frequency: 50Hz/60Hz • Display mode: LCD 5+1: 99999.9kWh

• Start current: 0.4% Ib. (1.0) • Power consumption: ≤8VA ≤0.4W • Voltage 12~27V, current ≤27mA, max lead length: 20m

• Impulse width=90ms, connect pulse counter to terminal 20 and 21

• Outside dimensions: 117.5x55.8x18mm (Fig 1)

Specifications and main parameters

1 Specification & model
